Introduction
What if your car couldn’t tell when a tyre was losing air pressure? What if an aeroplane couldn’t monitor cabin pressure, or a smartwatch couldn’t track changes in altitude? Many of the devices we rely on every day would be far less safe, accurate, and intelligent without one small component: the pressure sensor.
I was surprised when I first learnt just how many industries depend on pressure-sensing technology. From smartphones and fitness wearables to oil refineries and spacecraft, pressure sensors help machines make smarter decisions and operate more safely.
If you’re new to the world of sensors, it’s also helpful to understand the basics of temperature sensors and their applications, as they often work alongside pressure sensors in industrial and consumer systems.
In this guide, I’ll break down everything you need to know about pressure sensors, including how they work, the different types available, and the real-world applications that make them one of the most important sensors in modern technology.
What Is a Pressure Sensor?
A pressure sensor is a device that detects pressure changes in gases or liquids and converts this information into an electrical signal. This signal can then be used to monitor, control, or display pressure levels in various systems. Common types include piezoelectric, capacitive, and MEMS pressure sensors.
Types of Pressure Sensors

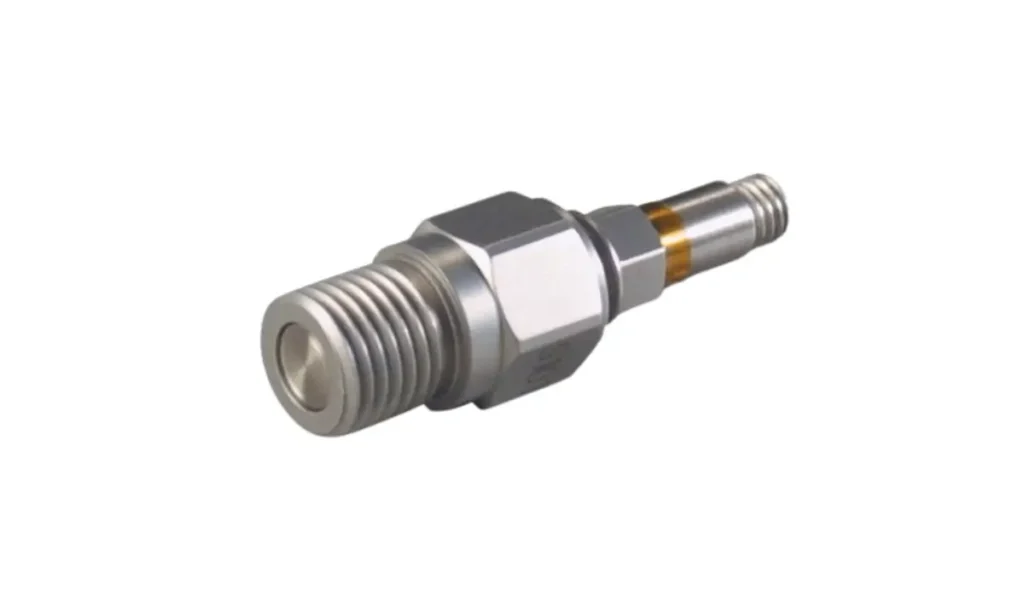

1. Piezoelectric Pressure Sensors
These sensors generate an electrical charge when pressure is applied to a piezoelectric material.
Best for: Dynamic pressure changes like in engines or shock waves.

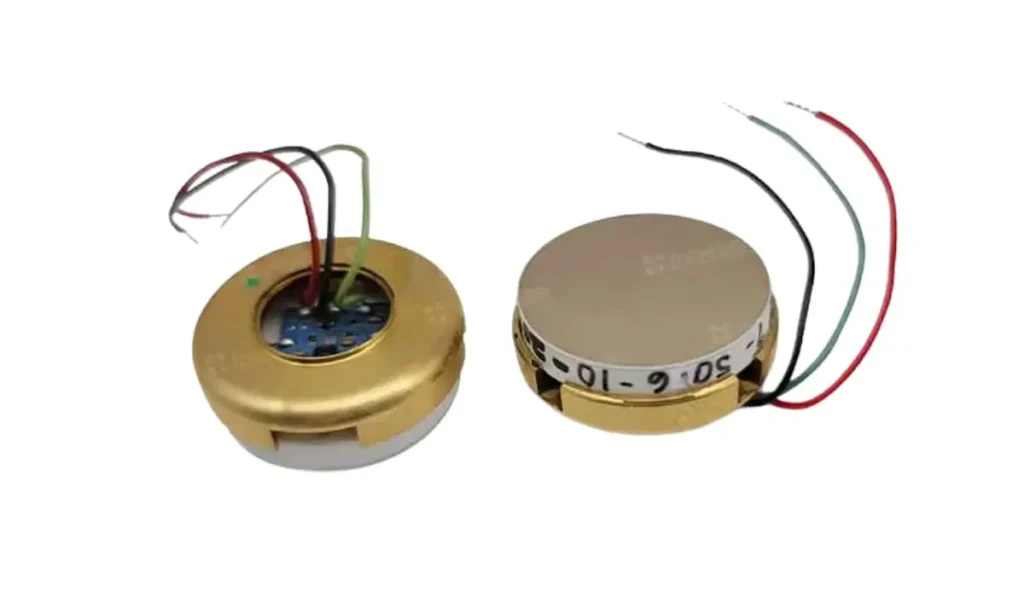

2. Capacitive Pressure Sensors
They measure pressure by detecting changes in capacitance between two plates.
Best for: Applications needing high sensitivity and stability, like HVAC systems.

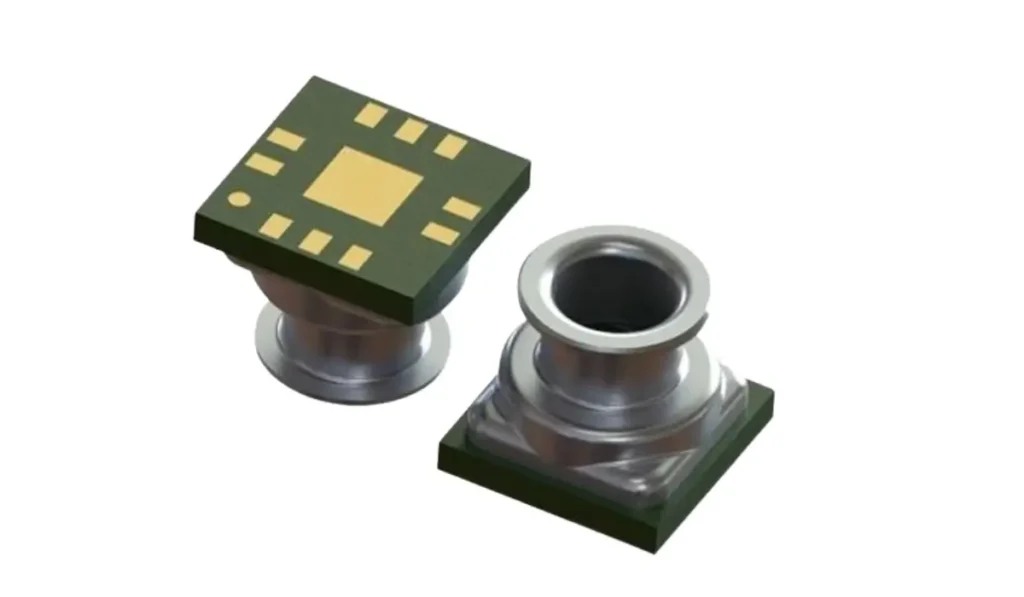

3. MEMS Pressure Sensors
Compact sensors made using micro-electromechanical systems.
Best for: Consumer electronics and automotive systems due to their small size and low power use.

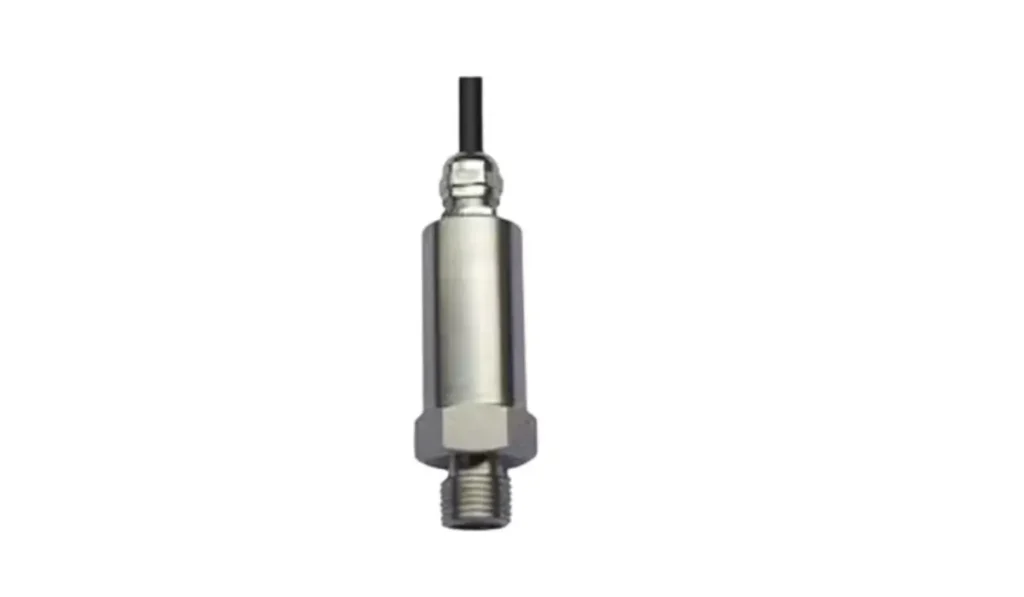

4. Strain Gauge Pressure Sensors
Use strain gauges bonded to a diaphragm that flexes with pressure, changing electrical resistance.
Best for: Industrial applications where precision and durability are key.

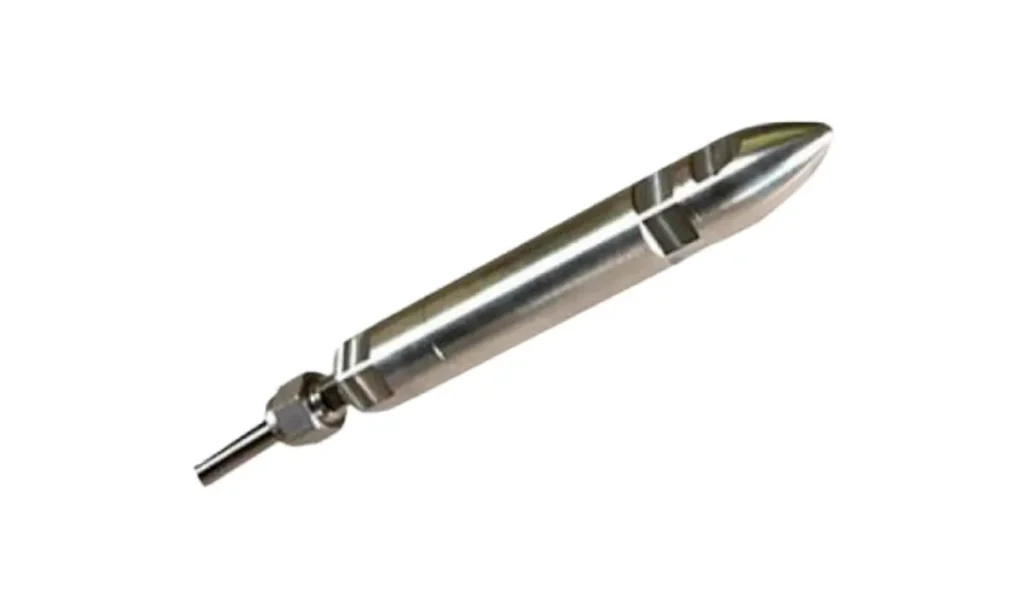

5. Optical Pressure Sensors
Measure pressure using light interference or changes in optical properties.
Best for: Harsh environments where electrical interference is an issue, such as aerospace.
Comparison Table: Pressure Sensor Types
| Sensor Type | Key Features | Common Applications |
|---|---|---|
| Piezoelectric | High-frequency response | Engine monitoring, acoustics |
| Capacitive | High sensitivity, stable output | Medical devices, HVAC |
| MEMS | Compact, low power consumption | Smartphones, automotive |
| Strain Gauge | High accuracy, robust | Industrial machinery |
| Optical | Immune to electromagnetic interference | Aerospace, harsh environments |
Did You Know?
A modern vehicle can contain more than a dozen pressure sensors that monitor everything from tire pressure and engine performance to fuel systems and air conditioning. Without these sensors, many of the safety features we take for granted wouldn’t be possible.
How to Choose the Right Pressure Sensor
Selecting the appropriate pressure sensor involves considering several factors:
- Pressure Range: Ensure the sensor can handle the expected pressure levels in your application.
- Accuracy: Determine the required precision for your measurements.
- Environmental Conditions: Consider temperature, humidity, and exposure to chemicals or vibrations.
- Output Type: Choose between analog or digital outputs based on your system’s requirements.
- Size and Integration: Ensure the sensor fits within your device and integrates seamlessly.
Applications of Pressure Sensors
| Industry | Applications |
|---|---|
| 🚗 Automotive | Monitor tire pressure, engine oil levels, and fuel systems for better safety and performance. |
| 🏥 Medical | Used in ventilators, blood pressure monitors, and infusion pumps for patient care. |
| 🏭 Industrial Automation | Regulate and monitor processes in factories and machinery for efficiency and safety. |
| 📱 Consumer Electronics | Integrated in smartphones and wearables to measure altitude, orientation, and touch pressure. |
| ✈️ Aerospace | Control cabin pressure and monitor atmospheric conditions during flight. |
Conclusion
Pressure sensors are one of those technologies most people never notice, yet they play a vital role in our daily lives. From cars and smartphones to medical devices and industrial machines, these sensors help monitor pressure, improve safety, and keep systems running efficiently.
As technology continues to evolve, pressure sensors are becoming smarter, smaller, and more accurate. Understanding how they work not only helps you learn the basics of electronics but also reveals the hidden technology behind many of the devices we use every day.
FAQs
-
What is a pressure sensor used for?
A pressure sensor is used to measure the force exerted by a fluid (liquid or gas) on a surface. It converts this force into an electrical signal for monitoring or control purposes in applications like HVAC systems, automotive engines, and medical devices.
-
What are the main types of pressure sensors?
The most common types include absolute, gauge, differential, and vacuum pressure sensors. Each is designed for specific use cases depending on the pressure reference point.
-
How do I choose the right pressure sensor?
You should consider the pressure range, accuracy, sensor type, electrical output, compatibility with your system, and environmental conditions like temperature and humidity.
-
Can pressure sensors measure both gas and liquid?
Yes, pressure sensors can be designed to measure both gases and liquids, depending on the sensor’s materials and design specifications.
-
What’s the difference between absolute and gauge pressure sensors?
An absolute pressure sensor measures pressure relative to a vacuum, while a gauge pressure sensor measures relative to atmospheric pressure.
